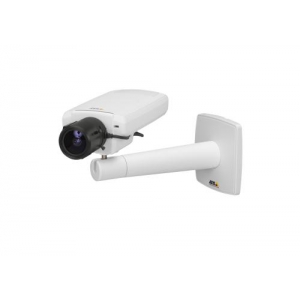

Axis-P1346 3MP/HDTV IP Camera Day Night

Model: AXIS-P1346.

Models: indoor
AXIS P1311: VGA resolution
AXIS P1343: SVGA resolution, day and night
AXIS P1344: 1 MP/HDTV 720p, day and night
AXIS P1346: 3 MP/HDTV 1080p, day and night
AXIS P1347: 5 MP/HDTV 1080p, day and night

Models: outdoor
AXIS P1343-E: SVGA resolution, day and night
AXIS P1344-E: 1 MP/HDTV 720p, day and night
AXIS P1346-E: 3 MP/HDTV 1080p, day and night
AXIS P1347-E: 5 MP/HDTV 1080p, day and night Image sensor
AXIS P1311 : Progressive scan RGB CMOS 1/4”
AXIS P1343/-E: Progressive scan RGB CMOS 1/4”
AXIS P1344/-E: Progressive scan RGB CMOS 1/4”
AXIS P1346/-E, Progressive scan RGB CMOS 1/3” (effective)
AXIS P1347/-E: Progressive scan RGB CMOS 1/2.5”

Lens :
All AXIS P13 cameras use CS-mount lens
AXIS P1311: 4.0 mm: 48° view*, F1.2, fixed iris
AXIS P1343/-E: Varifocal 3-8 mm: 59° – 25° view*, F1.4, DC-iris
AXIS P1344/-E: Varifocal 3-8 mm: 72° – 28° view*, F1.2, DC-iris
AXIS P1346/-E: Varifocal 4-10 mm: 61° – 29° view*, F1.8, P-Iris; DC-iris lenses also supported
AXIS P1347/-E: Varifocal 3.5-10 mm: 77° – 28° view*, F1.6, P-Iris; DC-iris lenses also supported *horizontal angle of view

Day and night Models :
AXIS P1343/-E, AXIS P1344/-E, AXIS P1346/-E, AXIS P1347/-E:Automatically removable infrared-cut filter

Minimum illumination
AXIS P1311: Color: 0.6 – 30000 lux, F1.2
AXIS P1343/-E: Color: 0.3 lux, B/W: 0.05 lux, F1.4
AXIS P1344/-E: Color: 0.3 lux, B/W: 0.05 lux, F1.2
AXIS P1346/-E: Color: 0.6 lux, B/W: 0.08 lux, F1.8
AXIS P1347/-E: Color: 0.5 lux, B/W: 0.08 lux, F1.6

Shutter time
AXIS P1311: 1/5000 s to 1/4 s
AXIS P1343/-E, AXIS P1344/-E: 1/24500 s to 1/6 s
AXIS P1346/-E: 1/35500 s to 1/6 s
AXIS P1347/-E: 1/25500 s to 1/6 s Video compression
AXIS P1311 : H.264 (MPEG-4 Part 10/AVC), Motion JPEG,MPEG-4 Part 2
AXIS P1343/-E, AXIS P1344/-E, AXIS P1346/-E, AXIS P1347/-E : H.264 (MPEG-4 Part 10/AVC), Motion JPEG

Resolutions
AXIS P1311: 640×480 (VGA) to 160×120
AXIS P1343/-E: 800×600 (SVGA) to 160×90
AXIS P1344/-E: 1280×800* (1 MP) to 160×90
AXIS P1346/-E: 2048×1536 (3 MP) to 160×90
AXIS P1347/-E: 2560×1920 (5 MP) to 160×90 *1440×900 (1.3 MP) scaled resolution available via VAPIX®

Frame rate MPEG-4 Part 2 : AXIS P1311: 30 fps in all resolutions

Frame rate H.264/ Motion JPEG :
AXIS P1311, AXIS P1343/-E, AXIS P1344/-E: 30 fps in all resolutions
AXIS P1346/-E, AXIS P1347/-E: 3 MP mode: 20 fps in all resolutions; HDTV 1080p (1920×1080) mode and 2 MP 4:3 (1600×1200) mode: 30 fps in all resolutions
AXIS P1347/-E: 5 MP mode: 12 fps in all resolutions Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG (as well as MPEG-4 Part 2 with AXIS P1311) Controllable frame rate and bandwidth VBR/CBR H.264

Audio streaming: Two-way Audio compression: AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate
Audio input/output : External microphone input or line input, line output AXIS P1311/P1343/P1344/P1346/P1347: Built-in microphone

Power
AXIS P1311/P1343/P1344/P1346/P1347: 8-20 V DC or Power overEthernet (PoE) IEEE 802.3af
AXIS P1311: max. 2.8 W, PoE Class 1
AXIS P1343/P1344: max. 6.4 W, PoE Class 2
AXIS P1346: max. 9.6 W, PoE Class 3
AXIS P1347: max. 9.0 W, PoE Class 3
AXIS P1343-E/P1344-E/P1346-E/P1347-E: PoE IEEE 802.3af max. 12.95 W or High PoE max 25.5 W Connectors RJ-45 10BASE-T/100BASE-TX PoE 3.5 mm mic/line in, 3.5 mm line out Terminal blocks for power, 1 alarm input and 1 output Local storage SD/SDHC memory card slot (card not included)

Operating conditions
AXIS P1311/P1343/P1344/P1346/P1347: Humidity 20 – 80% RH (non-condensing)
AXIS P1311: -10 ºC to 55 ºC (14 ºF to 131 ºF)
AXIS P1343/P1344/P1346/P1347: 0 ºC to 50 ºC (32 ºF to 122 ºF)
AXIS P1343-E/P1344-E/P1346-E/P1347-E: -30 ºC to 50 ºC (-22 ºF to 122 ºF) with PoE; down to -40 ºC (-40 ºF) with High PoE
