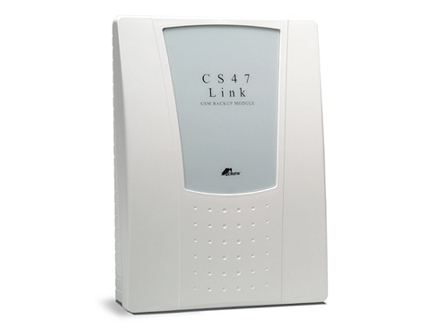

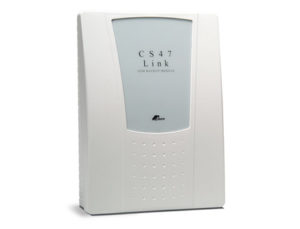

CS47 Link


GSM/GPRS Backup Unit for RUNNER™ Series

The CS-47 Link is a GSM/GPRS add-on modem operating on the Cellular phone network which connects to the Runner bus and can function as a dialer or backup dialer to the PSTN. When an event or alarm occurs the CS47 Link reports to the central station and sends an SMS message to a cellular phone.

Categories: .
  • Full event reporting for all Runner C.P. events
  • Multiple formats: CID , SMS, TCP/IP and CID over SMS reporting format
  • Reporting up to 4 subscriber phones in each format
  • GSM & GPRS communication – via  GSM Quad Band 900 / 1800 MHz or 850 / 1900 MHz modem based on Cinterion TC63i engine
  • TCPIP Via GPRS –Operating with CROW receiver server
  • Backup battery – rechargeable lead acid battery 12V/1.3Ah (CS47Link only)
  • Tamper alarms – triggered if cover is opened or the unit is torn from the wall
  • Programming the unit – using a PC via USB Port and via GPRS
  • Two Operating modes – Backup for the control panel and stand alone mode
